         FEATURED PRODUCT

Introducing OvalSox - Oval HVAC Ductwork now available!

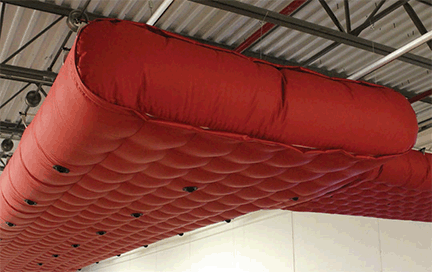

For many applications, Traditional Round or D-Shape DuctSox may not be the best fit. The depth of the Round DuctSox may hang too low into the space, while D-Shape will save on space, but may not carry the volume of air needed. To solve that, DuctSox now designs and manufactures OvalSox, fabric ductwork in an oval shape. The patent pending design also produces minimal sag when the AHU is off.



Typical Applications

OvalSox are ideal for applications with low head room or when
obstructions, such as machinery or equipment that cannot be moved, are

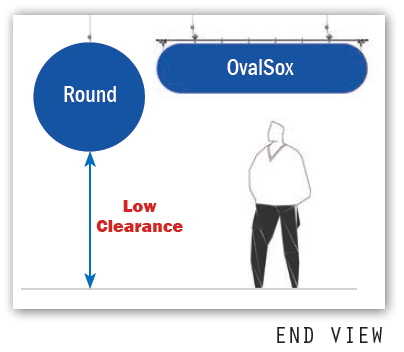

in the path of the ductwork. As illustrated below, OvalSox can save from
13” up to 27” (330mm up to 686mm) in head room space compared
to Traditional Round DuctSox, while still delivering the required airflow
volume for the application.



Features and Options

  • An application can be designed with all OvalSox runs, or in
    combination with Traditional Round DuctSox.
  • Size: Available in equivalent of 24” to 48” (610mm to
    1219mm) diameter round.
  • Fittings: Radius Elbows, Transitions, Take-Off’s, Crosses.
  • Suspension: Track or Cable, both used in combination
    with fiberglass rods.
  • Air Dispersion: Air-Porous Fabric, Linear Vents, Nozzles
    (Fixed or Adjustable), Orifices.
  • Fabrics: Sedona-Xm, TufTex, Verona, DuraTex, Microbe-X,
    Stat-X.
  • Warranty: 5 years

Download OvalSox brochure

Ductsox
9866 Kapp Court, Peosta, IA 52068
Ph: 563-588-5300 • Toll Free: 866-382-8769 • Fax: 563-588-5330
www.ductsox.com
