The NEW The
NEW EvenAir® Whole House Comfort Control System modulates
air delivery to balance temperatures.
Key Benefits: Meets Title 24, reduces HERS testing,
material saving from
47 to 57 percent over traditional zoning, reduces wiring by
50 percent.
|

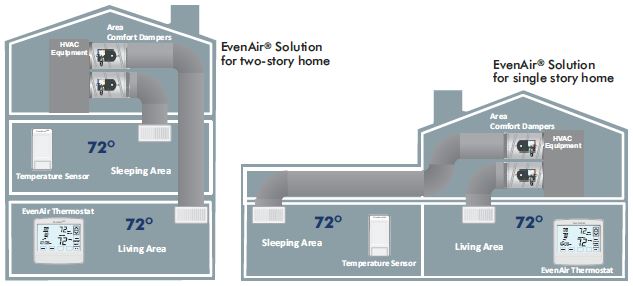

The EvenAir®
Solution
The EvenAir®
Whole House
Comfort
Control
System works
with your
heating and
cooling
appliances
to bring
temperature
balance to
your home.
EvenAir®
system
thermostat
monitors the
sleeping
area and
living area
temperatures.
The comfort
control
automatically
adjusts the
system
airflow.
Uniform air
delivery
balances
temperatures
for a
comfortable
home. The
EvenAir®
installation
is simple.
Your
contractor
will install
an EvenAir®
system
thermostat
where your
existing
thermostat
is located.
A
temperature
sensor is
installed in
the sleeping
area. Area
Comfort
Dampers that
control the
airflow to
the sleeping
area and
living area
will be
installed in
your
ductwork.
Features:
-
42 to 57
percent
material
savings
over
traditional
zoning
-
Eliminates
installing
zoning
panel,
DAT
sensor,
and
transformer
-
Eliminates
bypass
damper
and
ductwork
-
Reduces
wiring
by about
50
percent
-
Reduces
HERS
zoning
testing

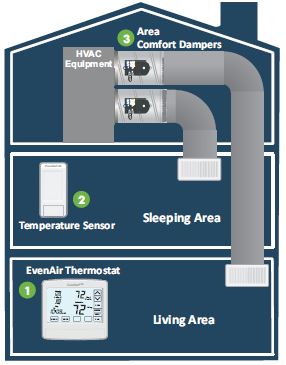

How It Works

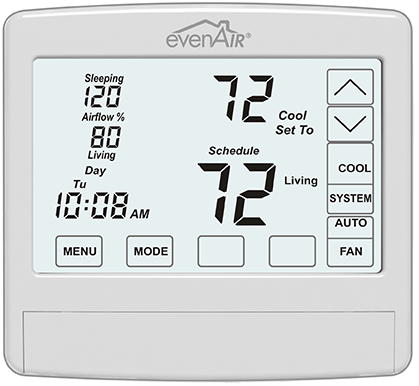

1.An EvenAir® thermostat monitors the
temperature in two locations (sleeping area
and living area) to maintain even
temperature throughout the home.
2.The second temperature sensor, located in
the sleeping area, is checked every 2
minutes during heating and cooling modes.
3.When the temperatures differ by more than
2 degrees (factory set at 2 degrees,
adjustable from 0 to 5 degrees) airflow is
automatically adjusted. Each EvenAir damper
is adjusted by 2% in the appropriate
direction to increase airflow where it is
needed. This modulates air delivery to
balance temperature throughout the home.
For more information and a demonstration,
contact us. We provide training, brochures,
and excellent customer service and tech
support. Call 252.522.3031 or email
sales@fieldcontrols.com.
|
